Fendt 943 Vario MT
|
|
| Production | |
| Manufacturer | Fendt (a part of AGCO) |
| Agricultural Crawler tractor | |
| Built in Jackson, Minnesota, USA | |
| Fendt 943 Vario MT Engine | |
| AGCO Power 9.8L 7-cyl diesel | |
 Engine details ... |
| Fendt 943 Vario MT Transmission | |
| continuously-variable transmission | |
 Transmission details ... |
| Fendt 943 Vario MT Power | |
| Engine (gross) | 425.1 hp 317.0 kW |
| Mechanical | |
| Drive | crawler |
| Cab standard with air-conditioning. | |

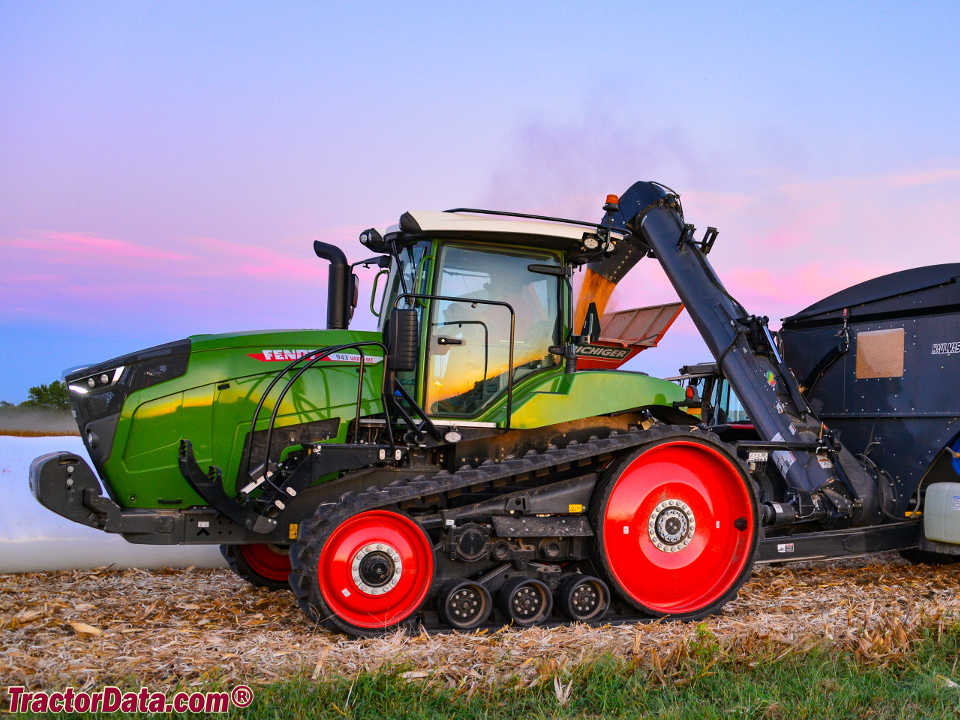

| Photos | |
 | |
 Fendt 943 Vario MT photos... | |
| Capacity | |
| Fuel | 180 gal 681.3 L |
| 215 galOptOptional 813.8 L | |
| 257 galOptOptional 972.7 L | |
| Exhaust fluid (DEF) | 18.8 gal 71.2 L |
| Hydraulic system | 33 gal 124.9 L |
| Hydraulics | |
| Type | closed center |
| Capacity | 33 gal 124.9 L |
| Pressure | 2900 psi 200.0 bar |
| Valves | 4 to 6 |
| Pump flow | 58 gpm 219.5 lpm |
| 116 gpm*Optional combined flow of dual pumps. 439.1 lpm | |
| SCV flow | 37 gpm 140.0 lpm |
| 45 gpm*Optional, with 0.625 or 0.75 inch couplers. 170.3 lpm | |
| Tractor hitch | |
| Rear Type | IVN/III |
| Control | position and draft control |
| Rear lift (at ends) | 19000 lbs 8618 kg |
| Rear lift (at 24"/610mm) | 16500 lbs 7484 kg |
| Drawbar | Cat. 4 |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 1000/1000E (1.75) |
| Engine RPM | 1000@1650 |
| 1000E@1225 | |
| Dimensions & Tracks | |
| Wheelbase | 101 inches 256 cm |
| Weight | 33443 to 33667 pounds |
| 14-inch tracks | |
 Full dimensions and tracks ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 300 *Dual 150A alternators. |
| Batteries | 2 |
| Battery volts | 12 |
| Battery AH | 185 |
| References | |
 | |
| 900 Vario MT Series published in 2020, by Fendt* | |
| *Publication contains known errors. |
