Tractors > Versatile > 700

Versatile 700

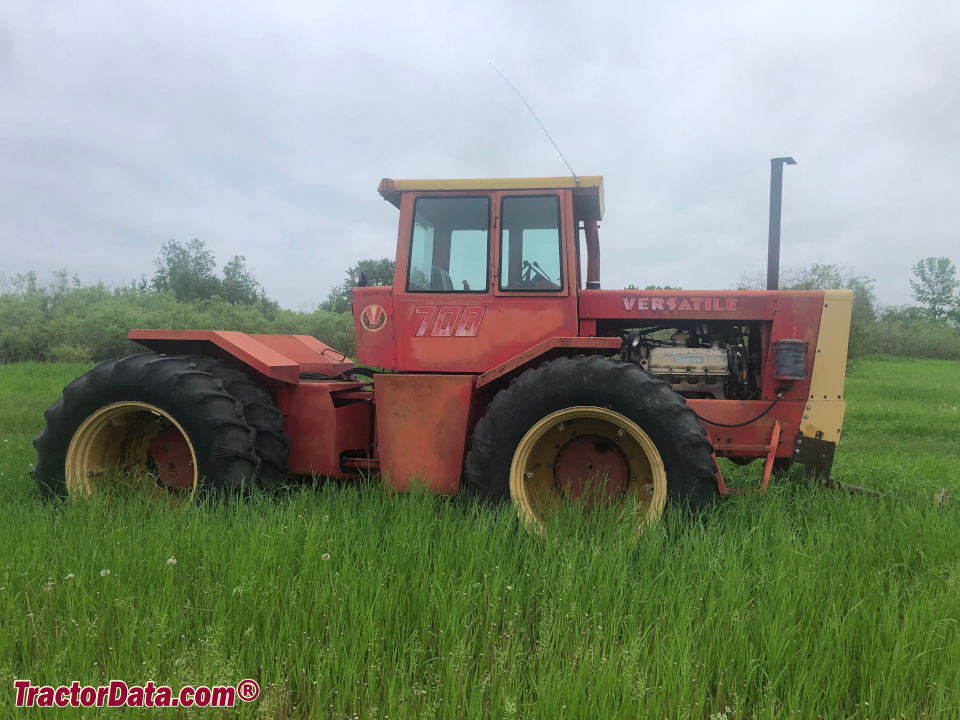

Versatile 700 tractor photo
1972 - 1977
Model year
2 Series
Four-wheel Drive (4WD) tractor
Series map:
700
750
210.0hp
220.0hp
Production
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $38,000 in 1977
Versatile 700 Engine
Cummins 9.1L 8-cyl diesel
Engine details ...
Versatile 700 Transmission
12-speed gear
Transmission details ...
Versatile 700 Power
Engine210 hp
156.6 kW
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic disc brakes
Cab standard with available heater and air-conditioning.
Photos
Versatile 700
Versatile 700 photos...
Capacity
Fuel170 gal
643.5 L
Hydraulic system18.6 gal
70.4 L
Hydraulics
Typeopen center
Capacity18.6 gal
70.4 L
Pressure2000 psi
137.9 bar
Valves3
Pump flow25 gpm
94.6 lpm
Steering flow24 gpm
90.8 lpm
Steering press.1800 psi
124.1 bar
Tractor hitch
Rear TypeIII OptOptional
Controlposition and depth control
Rear lift (at ends)18270 lbs
8287 kg
Rear lift (at 24"/610mm)12370 lbs
5611 kg
Power Take-off (PTO)
Rear PTO Type1000
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight16920 to 25000 pounds
Front tire24.5x32
Rear tire24.5x32
Full dimensions and tires ...
700 Serial Numbers
1972070077
1973070601
1974700 5010001
1975700 3010401
1976700 76 011501
1977700 77 013001
Final700 77 013250

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Batteries2
Battery volts12
References
700 references literature
Series 2 - Today's Investment for the Future published in 1976, by Versatile
Owner's Manual Model 700 (26555) published in 1976
Series 2 published in 1977, by Versatile
Service Manual Series 2 Four-Wheel Drive Tractors (PU4001) published in 1977*
*Publication contains known errors.
