Tractors > Versatile > 850

Versatile 850 Engine



Versatile 850 tractor photo
1973 - 1977
Model year
1 Series
Four-wheel Drive (4WD) tractor
Series map:
800
850
900
250.0hp
280.0hp
300.0hp
Engine Detail
Cummins NT-855-C280
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power280 hp
208.8 kW
Air cleanerdual dry element
Pre-heatingether injection
Rated RPM2100
Idle RPM900-2300
Starter volts12
Coolant capacity49 qts
46.4 L
Engine Oil

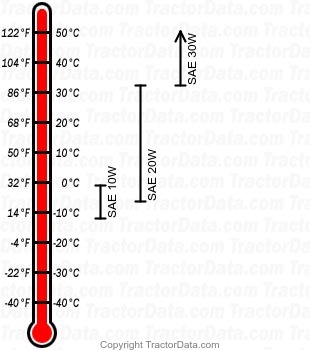

850 diesel engine oil chart
Oil capacity41 qts
38.8 L
Oil change200 h
