| | 1984 - 1989 |
| 46 Series | | Utility tractor |
|
Series map:
55-46
65-46
40.4kw
48.5kw
| Transmission options |
| 8-speed partially synchronized |
| 12-speed creeper |
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges. |
| Speeds |
| With 14.9/13-30 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 4 reverse
|

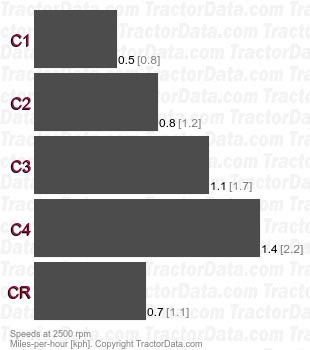

| Speeds |
| With 14.9/13-30 rear tires. |
|
| Shift Pattern |
 |
