SAME Minitaurus 60
|
|
| Production | |
| Manufacturer | SAME |
| Utility tractor | |
| SAME Minitaurus 60 Engine | |
| SAME 3.1L 3-cyl diesel | |
| Fuel tank | 15.9 gal 60.2 L |
 Engine details ... | |
| SAME Minitaurus 60 Transmissions | |
| 14-speed synchronized | |
| 14-speed creeper | |
 Transmission details ... |
| SAME Minitaurus 60 Power | |
| Engine | 59 hp 44.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Manual steering | |
| Disc brakes | |
| Four-post ROPS. | |
| Photos | |
 | |
 SAME Minitaurus 60 photos... | |
| Hydraulics | |
| Pump flow | 6.3 gpm 23.8 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 4320 lbs 1959 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540 |
| 540/1000 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 84.3 inches 214 cm |
| 4WD Wheelbase | 83.1 inches 211 cm |
| Weight | 4820 to 5240 pounds |
| Front tire | 7.50-16 |
| 2WD Rear tire | 14.9-30 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging system | generator |
| Watts (rated) | 460 |
| Battery volts | 12 |
| Battery AH | 110 |
| References | |
 | |

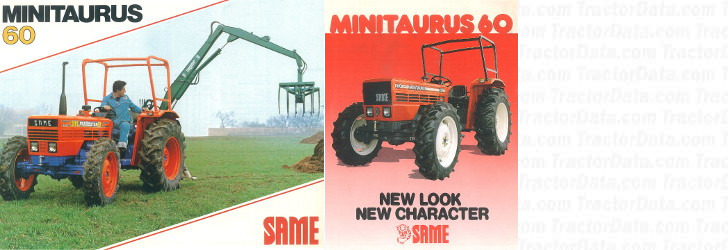

| Minitaurus 60 published in 1981, by SAME | |
| Minitaurus 60 published in 1985, by SAME |
