| | 2020 - |
| M6002 Series | | Utility tractor |
|
Series map:
M6122
M6132
91.0kw
98.4kw
| Transmission options |
| 24-speed eight-speed power shift |
| 32-speed creeper |
| Transmission |
| Type | eight-speed power shift
|
| Gears | 24 forward and reverse
|
| Clutch | electro-hydraulic wet disc
|
| Eight power shift gears in three ranges with power shuttle. |

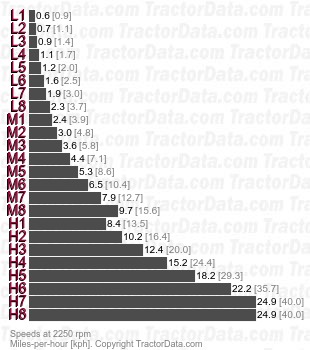

| Speeds |
| H8 is an overdrive gear, maximum speed at 1640 RPM. |
|
| Transmission |
| Type | creeper
|
| Gears | 32 forward and reverse
|
