Tractors > John Deere > 7510 Hi-Crop

John Deere 7510 Hi-Crop Engine



John Deere 7510 Hi-Crop tractor photo
1999 - 2002
7010 Series
High-Clearance tractor
Series map:
7410 Hi-Crop
7510 Hi-Crop
120.0hp
135.0hp
Engine Detail
John Deere PowerTech 6068
turbocharged diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power135 hp
100.7 kW
Air cleanerdual paper elements
Compression17:1
Rated RPM2100
Torque395 lb-ft
535.6 Nm
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity20 qts
18.9 L
Engine Oil

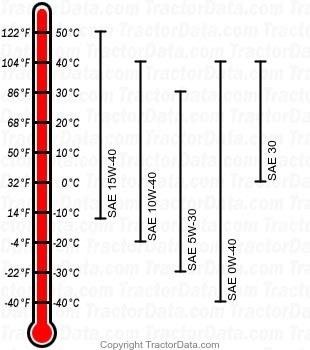

7510 Hi-Crop diesel engine oil chart
Oil capacity20 qts
18.9 L
