John Deere 6410SE Transmission


No photo available
1998 - 2003
6010SE Series
Utility tractor
Series map:
6310SE
6410SE
74.6kw
78.3kw
Transmission options
12-speed synchronized
16-speed power shuttle
16-speed four-speed power shift
Transmission
TransmissionSynchroPlus
Typesynchronized
Gears12 forward and 4 reverse
Clutch225mm wet discs
Oil change250 h
Three synchronized gears, plus reverse, in four synchronized ranges.
Speeds
With 14.9-38 rear tires.

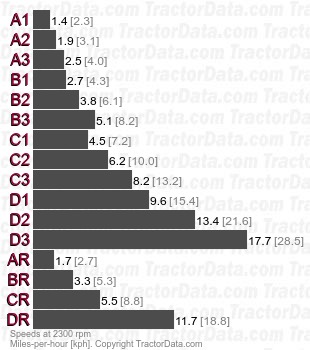

6410SE SynchroPlus synchronized speeds
Transmission
TransmissionPower Reverser
Typepower shuttle
Gears16 forward and reverse
Clutch225mm wet discs
Four synchronized gears in four synchronized ranges with power shuttle.
Speeds
With 14.9-38 rear tires and 30KPH transmission option. Rear speeds are 20% faster than forward.

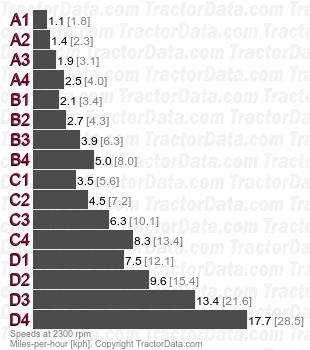

6410SE Power Reverser power shuttle speeds
Transmission
TransmissionPowerQuad
Typefour-speed power shift
Gears16 forward and reverse
Clutch225mm wet discs
Four power shift gears in four synchronized ranges with power shuttle.
Speeds
With 14.9-38 rear tires and 40KPH transmission option. Rear speeds are 20% faster than forward.

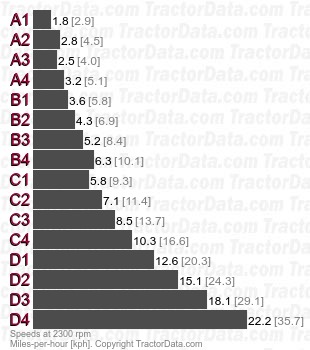

6410SE PowerQuad four-speed power shift speeds
