Fendt 411 Vario
|
|
| Production | |
| Manufacturer | Fendt (a part of AGCO) |
| Row-Crop tractor | |
| Fendt 411 Vario Engine | |
| Deutz 4.0L 4-cyl diesel | |
| Fuel tank | 64.7 gal 244.9 L |
 Engine details ... | |
| Fendt 411 Vario Transmission | |
| continuously variable transmission | |
 Transmission details ... |
| Fendt 411 Vario Power | |
| Engine (gross) | 112.7 hp 84.0 kW |
| Engine (net) | 99.2 hp 74.0 kW |
| Engine (max) | 118 hp 88.0 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Cab standard with heat. Air-conditioning optional. |

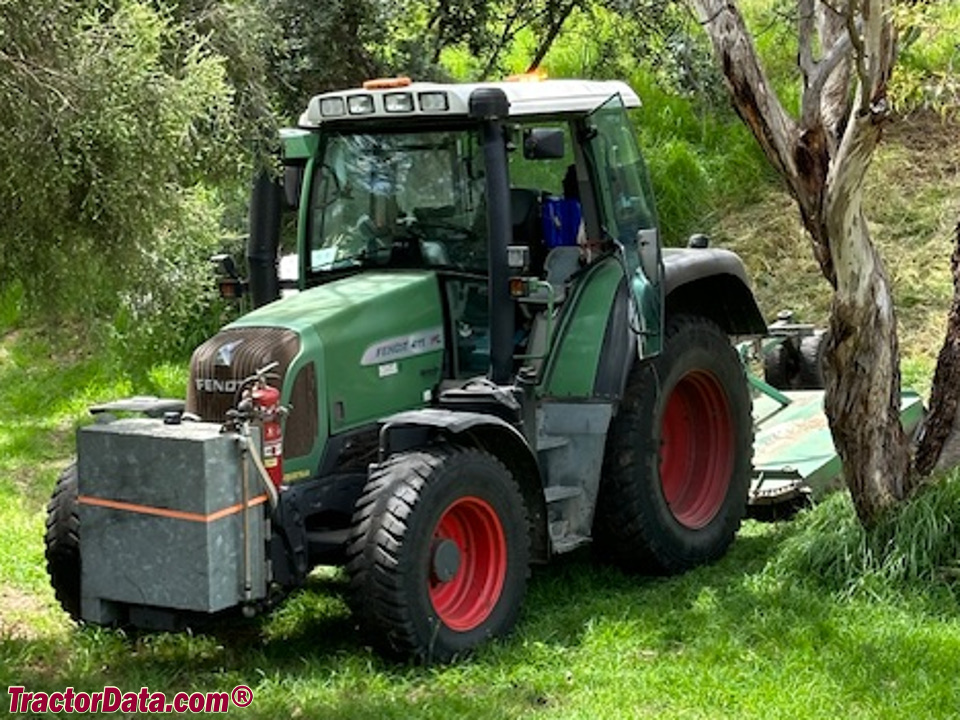

| Photos | |
 | |
 Fendt 411 Vario photos... | |
| Hydraulics | |
| Type | load sensing |
| Pressure | 2900 psi 200.0 bar |
| Pump flow | 19.8 gpm 74.9 lpm |
| 29.1 gpmOptOptional 110.1 lpm | |
| Tractor hitch | |
| Rear Type | III/II |
| Rear lift | 16424 lbs 7449 kg |
| Front lift | 6834 lbs 3099 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/540E/1000 |
| Front PTO | independent OptOptional |
| Front PTO Type | 540 |
| 1000 | |
| Dimensions & Tires | |
| Wheelbase | 95.2 inches 241 cm |
| Weight | 11905 lbs 5400 kg |
| Front tire | 480/65R24 |
| Rear tire | 540/65R38 |
 Full dimensions and tires ... | |
| Fendt 411 Vario attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| Charging volts | 14 |
| Battery volts | 12 |
| Battery AH | 90 |
| References | |
 | |
| Fendt 400 Vario published in 2006 | |
| Fendt 400 Vario published in 2008 | |
| Fendt 400 Vario published in 2010 |
