Tractors > Massey Ferguson > GC1725M

Massey Ferguson GC1725M



Massey Ferguson GC1725M tractor photo
2019 -
GC1700 Series
Sub-Compact Utility tractor
Series map:
GC1723E
GC1725M
22.5hp
24.5hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Sub-Compact Utility tractor
Original price was $12,645 in 2020
Variants
GC1725Mtractor
GC1725MBbackhoe-loader tractor
Massey Ferguson GC1725M Engine
Iseki 1.1L 3-cyl diesel
Fuel tank6.6 gal
25.0 L
Engine details ...
Massey Ferguson GC1725M Transmission
hydrostatic
Transmission details ...
Massey Ferguson GC1725M Power
Engine (gross)24.5 hp
18.3 kW
Engine (net)23.9 hp
17.8 kW
PTO (claimed)24.5 hp
18.3 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post fixed ROPS. Folding ROPS on GC1725MB backhoe package.
Photos

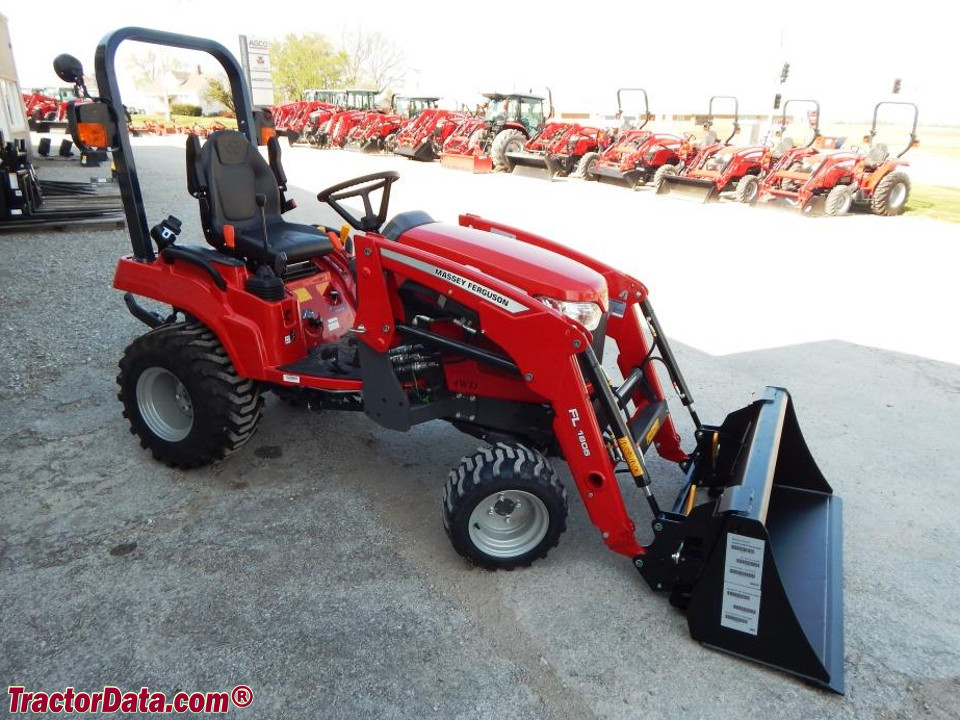

Massey Ferguson GC1725M, right side.
Massey Ferguson GC1725M photos...
Hydraulics
Typeopen center
Pressure1920 psi
132.4 bar
Pump flow4.9 gpm
18.5 lpm
Total flow6.9 gpm
26.1 lpm
Steering flow2.0 gpm
7.6 lpm
Steering press.1209 psi
83.4 bar
Tractor hitch
Rear TypeI
Rear lift (at ends)1191 lbs
540 kg
Rear lift (at 24"/610mm)661 lbs
299 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchmechanical wet disc
Rear PTO Type540 (1.375)
Engine RPM540@2829
Mid PTOindependent
Mid PTO Type2000 (1.00)
Dimensions & Tires
Wheelbase57.1 inches
145 cm
Weight1532 lbs
694 kg
Front tire18x8.50-10
Rear tire26x12.00-12
Full dimensions and tires ...
Massey Ferguson GC1725M attachments
54" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegatve
Charging systemalternator
Charging amps40
Battery CCA433
Battery volts12
References
GC1725M references literature
GC1700E/M Series published in 2019, by Massey Ferguson
