Tractors > New Holland > TN65F

New Holland TN65F Engine



New Holland TN65F tractor photo
1998 - 2001
TNF Series
Orchard/Vineyard tractor
Series map:
TN65F
TN75F
68.0hp
77.5hp
Engine Detail
Iveco 8045
diesel
4-cylinder
liquid-cooled
Displacement238.5 ci
3.9 L
Bore/Stroke4.094x4.528 inches
104 x 115 mm
Power (net)65 hp
48.5 kW
Power (gross)68 hp
50.7 kW
Pre-heatingthermostart
Compression17:1
Rated RPM2300
Firing order1-3-4-2
Starterelectric
Starter volts12
ROPS Coolant capacity11.1 qts
10.5 L
Cab Coolant capacity13.2 qts
12.5 L
Engine Oil

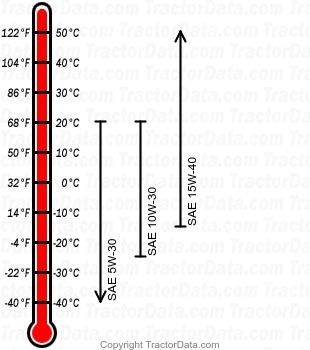

TN65F diesel engine oil chart
Oil capacity11.1 qts
10.5 L
