Production | |
Distributor | John Deere |
Manufacturer | Goldoni |
Orchard/Vineyard tractor | |
Built in Italy |
John Deere 1845F Engine | |
John Deere 2.9L 3-cyl diesel | |
Fuel tank | 10.6 gal 40.1 L |
Engine details ... |
John Deere 1845F Transmissions | |
8-speed synchronized | |
16-speed creeper | |
Transmission details ... |
John Deere 1845F Power | |
Engine | 55.2 hp 41.2 kW |
Mechanical | |
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical wet disc brakes | |
Two-post mid-mount folding ROPS. Quick-mount cab available. |

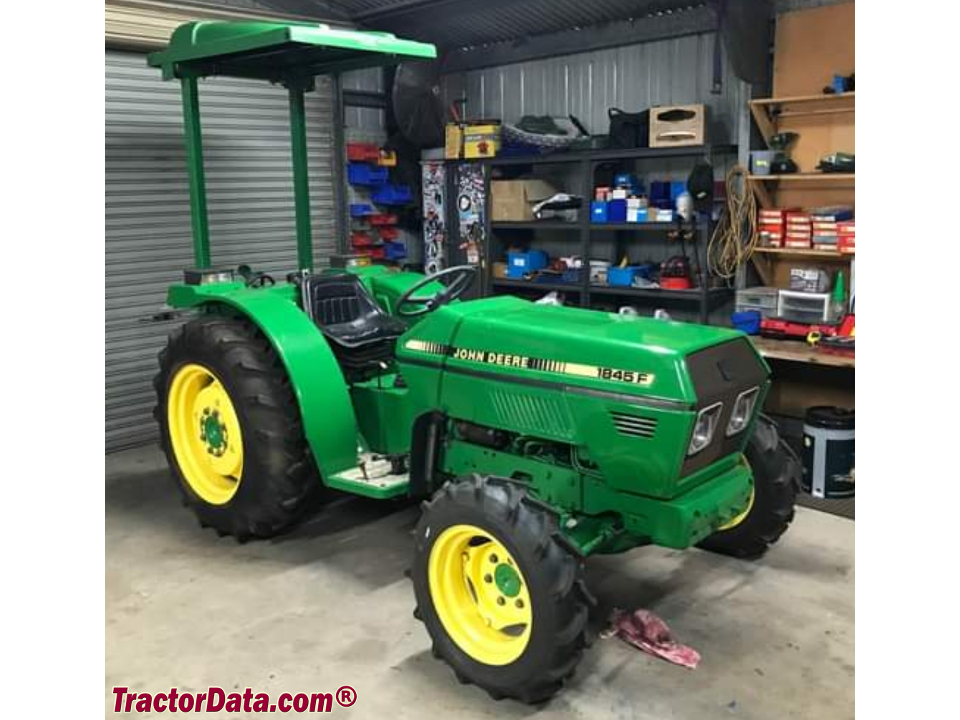

Photos | |
John Deere 1845F photos... |
Hydraulics | |
Type | open center |
Pressure | 2611 psi 180.0 bar |
Rear valves | 3 |
Mid valves | 3 |
Pump flow | 8.7 gpm 32.9 lpm |
  | 17.4 gpmOptOptional 65.9 lpm |
Tractor hitch | |
Rear Type | IIN/I |
Control | top-link draft sensing |
Rear lift (at 24"/610mm) | 3197 lbs 1450 kg |
Power Take-off (PTO) | |
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@2165 |
  | 540E@1624 |
Dimensions & Tires | |
Wheelbase | 72.2 inches 183 cm |
Weight | 4057 to 4641 pounds |
Front tire | 7.00-12 |
2WD Low-Profile Rear tire | 14.5-20 |
Full dimensions and tires ... |
Electrical | |
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Battery volts | 12 |
Battery AH | 100 |
References | |
Orchard Tractors published in 1989, by John Deere |
