John Deere 1745F Transmission


No photo available
1987 - 1990
45F Series
Orchard/Vineyard tractor
Goldoni built
Series map:
1445F
1745F
1845F
30.9kw
35.3kw
41.2kw
Transmission options
8-speed synchronized
16-speed creeper
Transmission
Typesynchronized
Gears8 forward and 4 reverse
Four gears in two ranges, plus reverse range.
Speeds

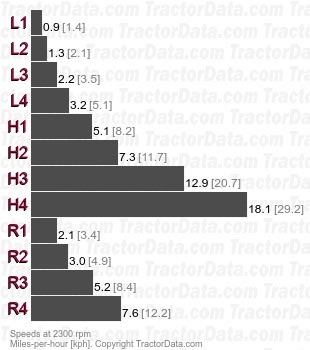

1745F  synchronized speeds
Shift Pattern
John Deere 1745F transmission controls
Transmission
Typecreeper
Gears16 forward and 8 reverse
Speeds

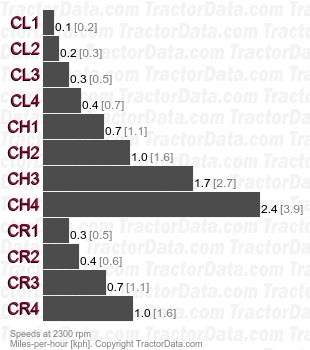

1745F  creeper speeds
