TYM T574
|
|
| Production | |
| Manufacturer | TYM |
| Compact Utility tractor | |
| TYM T574 Engine | |
| Kukje 2.3L 4-cyl diesel | |
| Fuel tank | 17 gal 64.3 L |
 Engine details ... | |
| TYM T574 Transmissions | |
| 8-speed shuttle | |
| hydrostatic | |
 Transmission details ... |
| TYM T574 Power | |
| Engine (gross) | 55 hp 41.0 kW |
| Mechanical | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. |

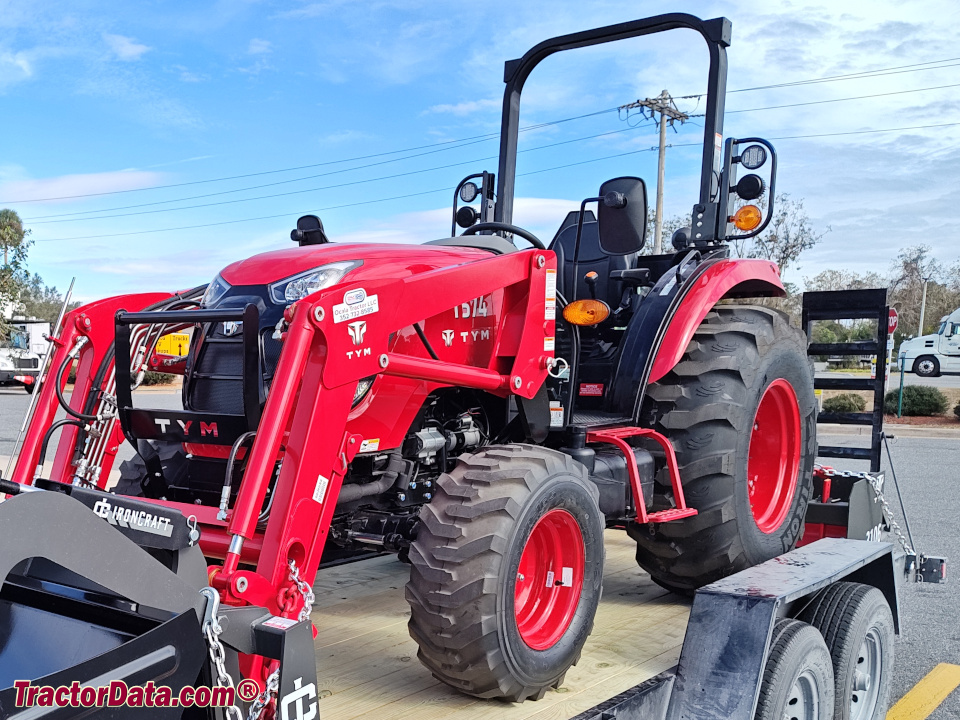

| Photos | |
 | |
 TYM T574 photos... | |
| Hydraulics | |
| Type | open center |
| Valves | 2 |
| Rear valves | 2 |
| Pump flow | 7.7 gpm 29.1 lpm |
| Total flow | 11.9 gpm 45.0 lpm |
| Steering flow | 4.3 gpm 16.3 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position and draft control |
| Rear lift (at ends) | 3822 lbs 1733 kg |
| Rear lift (at 24"/610mm) | 3051 lbs 1383 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 76.2 inches 193 cm |
| Weight | 4034 to 4299 pounds |
| Front tire | 9.5-16 |
| Rear tire | 13.6-26 |
 Full dimensions and tires ... | |
| TYM T574 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging amps | 70 |
| Battery volts | 12 |

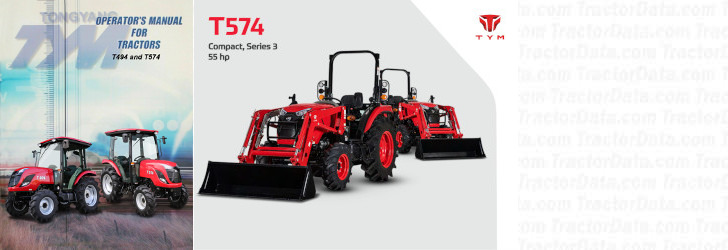

| References | |
 | |
| Operator's Manual for Tractor T494 and T574 HST | |
| T574 Compact, Series 3 published in 2024, by TYM |
