John Deere 6195M Transmission


John Deere 6195M tractor photo
2015 - 2025
Model year
6M Series
Utility tractor
Series map:
6175M
6195M
175.0hp
196.0hp
Transmission options
16-speed four-speed power shift
20-speed four-speed power shift
Transmission
TransmissionPowrQuad
Typefour-speed power shift
Gears16 forward and reverse
Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.
Speeds
With 460/85R42 rear tires and 30 KPH transmission option. Reverse speeds are 4% faster than forward.
6195M PowrQuad four-speed power shift speeds
Transmission
TransmissionPowrQuad/AutoQuad
Typefour-speed power shift
Gears20 forward and reverse
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand power shuttle. AutoQuad automatically shifts through the available gears within the selected range.
Speeds
With 460/85R42 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward.

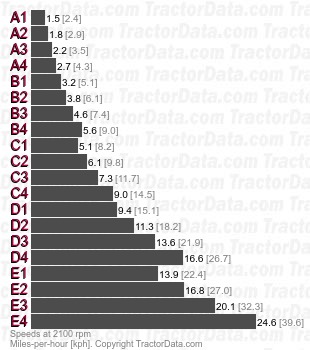

6195M PowrQuad/AutoQuad four-speed power shift speeds
Transmission
TransmissionCommandQuad
Typefour-speed power shift
Gears20 forward and reverse
Four power shift gears (1-4) in five electro-hydraulically shifted ranges (A-F) with left-hand power shuttle.
Speeds
With 460/85R42 rear tires and 40 KPH transmission option. Reverse speeds are 4% faster than forward.
6195M CommandQuad four-speed power shift speeds
