LS MT235E
| | 2019 - |
| MT2 Series | | Compact Utility tractor |
|
| Production |
| Manufacturer | LS
|
| Compact Utility tractor |
| Variants |
| MT235HE | hydrostatic
|
| LS MT235E Power |
| Engine (gross) | 35 hp
26.1 kW
|
| Shuttle PTO (claimed) | 29.7 hp
22.1 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. |
| Hydraulics |
| Valves | 0 to 2
|
| Pump flow | 8.2 gpm
31.0 lpm
|
| Shuttle Total flow | 12.3 gpm
46.6 lpm
|
| Hydro Total flow | 13.7 gpm
51.9 lpm
|
| Shuttle Steering flow | 4.1 gpm
15.5 lpm
|
| Hydro Steering flow | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1808 lbs
820 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | independent OptOptional
|
| Mid PTO Type | 2000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 70
|
| Charging volts | 12
|
| Battery volts | 12
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on October 8, 2020 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

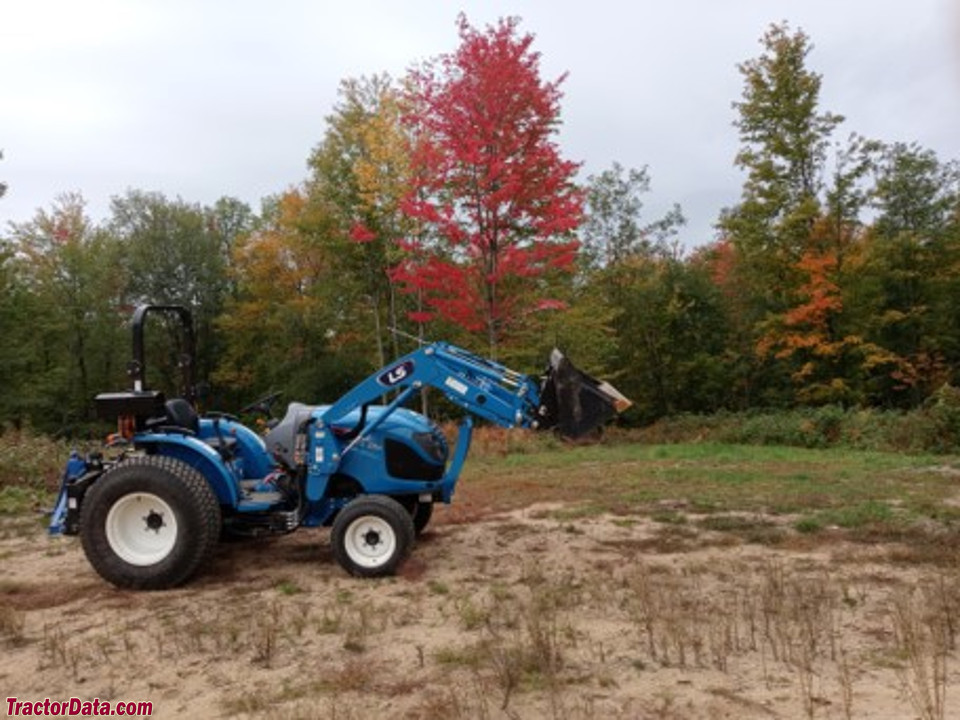

LS MT235E photos...
