Tractors > John Deere > 5615 F

John Deere 5615 F

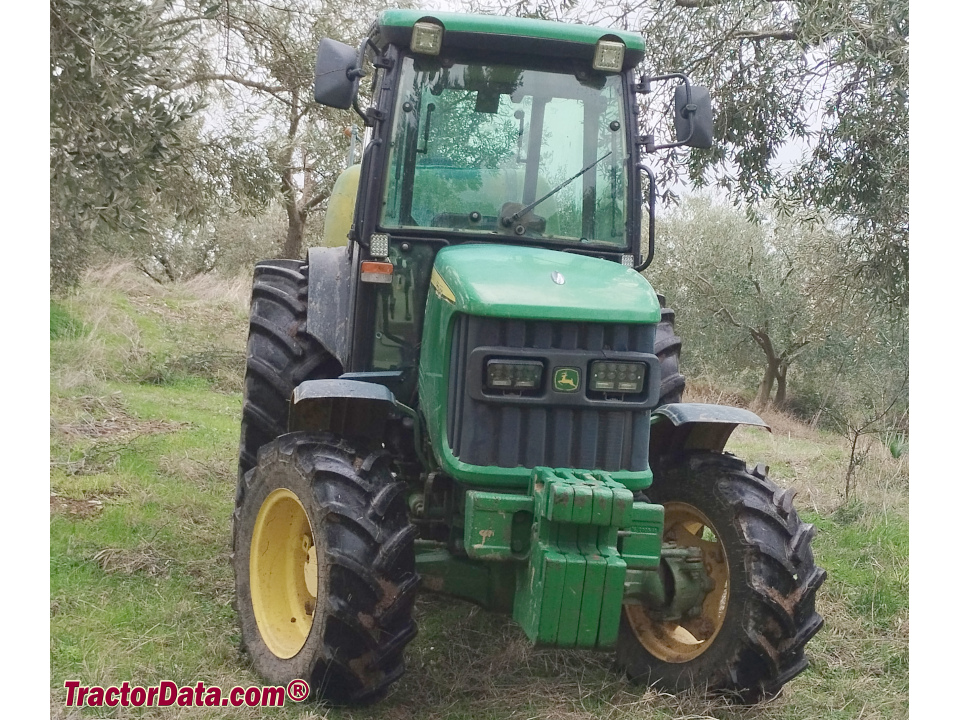

John Deere 5615 F tractor photo
2003 - 2008
5015 Series
Orchard/Vineyard tractor
Agritalia built
Series map:
5515 F
5615 F
61.1kw
65.6kw
Production
DistributorJohn Deere
ManufacturerAgritalia
Orchard/Vineyard tractor
Built in Italy
Variants
5615Forchard
5615Vvineyard
John Deere 5615 F Engine
John Deere 4.5L 4-cyl diesel
Fuel tank19.8 gal
74.9 L
Engine details ...
John Deere 5615 F Transmissions
12-speed partially synchronized
24-speed partially synchronized
24-speed power shuttle
Transmission details ...
John Deere 5615 F Power
Engine (gross)88 hp
65.6 kW
Engine (net)88 hp
65.6 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical
 electro-hydraulic OptOptional
Power steering
Wet disc brakes
Trailer brakeshydraulic OptOptional
Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.
Photos
No photos of the John Deere 5615 F are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2756 psi
190.0 bar
Pump flow12.4 gpm
46.9 lpm
 15.8 gpmOptOptional
59.8 lpm
Steering flow6.5 gpm
24.6 lpm
Tractor hitch
Rear TypeII/I/IN
Controlposition and draft control
Rear lift5395 lbs
2447 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E
 540/1000
Engine RPM540@1938
 540E@1648
 1000@1962
Dimensions & Tires
2WD Wheelbase81.8 inches
207 cm
4WD Wheelbase82.2 inches
208 cm
Weight5776 to 6460 pounds
Front tire250/80R18
F 4WD Rear tire380/70R28
Full dimensions and tires ...
5615 F Serial Numbers
Location:Serial number plate on the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps40
Cab Charging amps60
Battery volts12
Battery AH100
References
5615 F references literature
Operator's Manual 5215F/V, 5315F/V, 5515F/V and 5615F/V Tractors (OMER360218) published in 2008
