| | 2003 - 2008 |
| 5015 Series | | Orchard/Vineyard tractor | | Agritalia built |
|
Series map:
5515 F
5615 F
61.1kw
65.6kw
| Engine Detail |
| John Deere |
| turbocharged diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 276 ci
4.5 L
|
| Bore/Stroke | 4.19x5.00 inches
106 x 127 mm
|
| Emissions | Tier II
|
| Rated Power (net) | 88 hp
65.6 kW
|
| Rated Power (gross) | 88 hp
65.6 kW
|
| Compression | 17:1
|
| Rated RPM | 2300
|
| Idle RPM | 825-2510
|
| Operating RPM | 1200-2300
|
| Firing order | 1-3-4-2
|
| Starter | electric
|
| Starter volts | 12
|

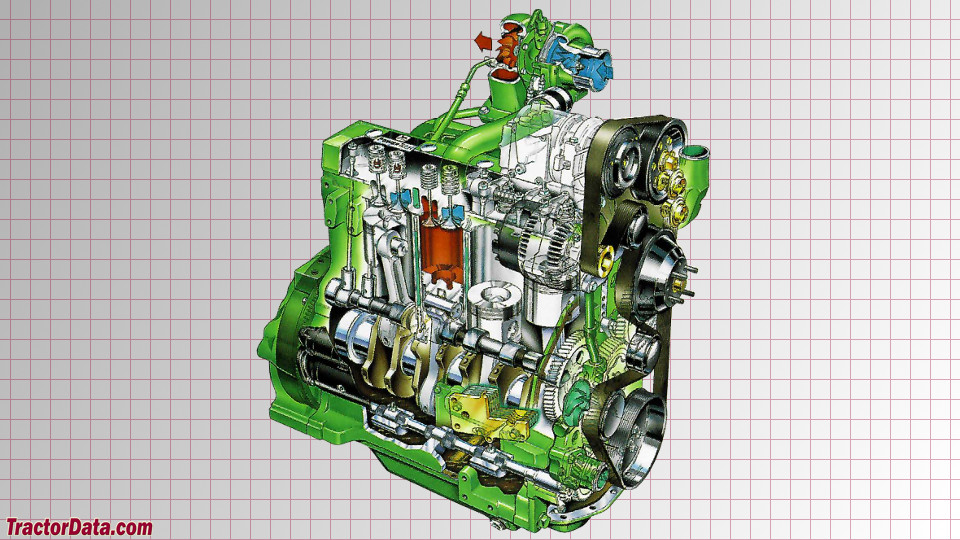

| John Deere 5615 F Engine |
 |
