John Deere 5515 F Transmission


John Deere 5515 F tractor photo
2003 - 2008
5015 Series
Orchard/Vineyard tractor
Agritalia built
Series map:
5315 F
5515 F
5615 F
49.6kw
61.1kw
65.6kw
Transmission options
12-speed partially synchronized
24-speed partially synchronized
24-speed power shuttle
Transmission
Typepartially synchronized
Gears12 forward and reverse
Four synchronized gears (1-4) in three ranges (A-C) with mechanical shuttle. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 380/70R28 rear tires.

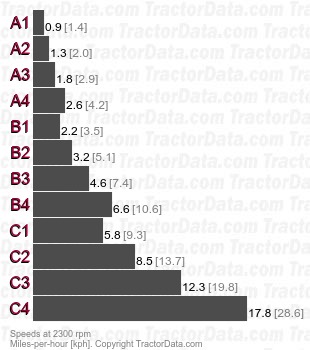

5515 F  partially synchronized speeds

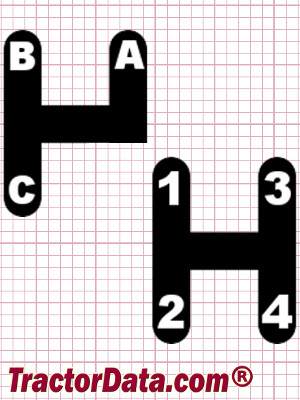

Shift Pattern
John Deere 5515 F transmission controls
Transmission
TransmissionHi-Lo
Typepartially synchronized
Gears24 forward and reverse
The Hi-Lo transmission adds an additional two-speed shift to the base transmission. The Hi-Lo can be either electronic or mechanical. Mechanical is operator with a sliding lever and requires the clutch. Electro-hydraulic is a push-button shift.
Speeds
With 380/70R28 rear tires. Reverse speeds are 10% slower than forward.

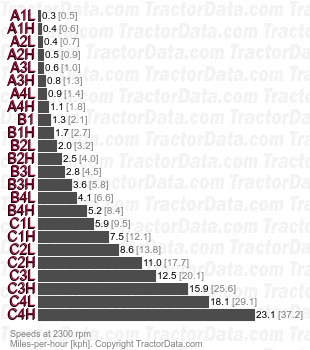

5515 F Hi-Lo partially synchronized speeds
Transmission
TransmissionPower Reverser
Typepower shuttle
Gears24 forward and 12 reverse
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and power shift Hi-Low. Push-button clutch for gear shifting.
Speeds
With 380/70R28 rear tires. Reverse speeds are 10% slower than the forward high range.

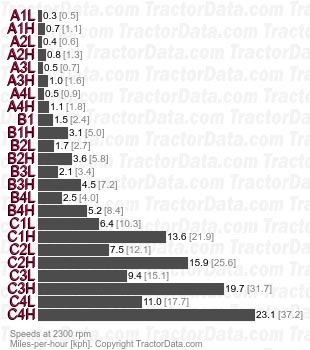

5515 F Power Reverser power shuttle speeds
