John Deere 5515 F Engine


John Deere 5515 F tractor photo
2003 - 2008
5015 Series
Orchard/Vineyard tractor
Agritalia built
Series map:
5315 F
5515 F
5615 F
49.6kw
61.1kw
65.6kw
Engine Detail
John Deere
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier II
Rated Power (net)80 hp
59.7 kW
Rated Power (gross)82 hp
61.1 kW
Compression17:1
Rated RPM2300
Idle RPM825-2510
Operating RPM1200-2300
Firing order1-3-4-2
Starterelectric
Starter volts12
John Deere 5515 F Engine

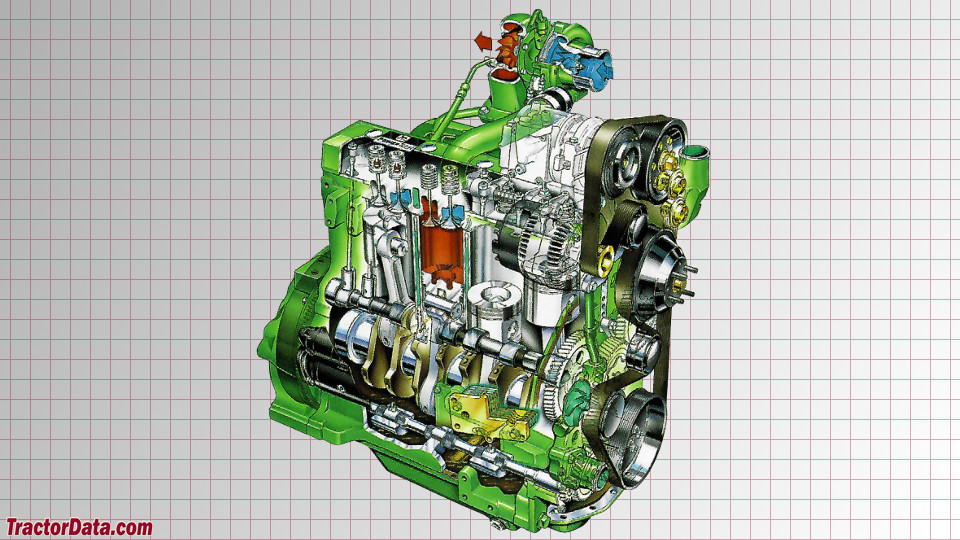

John Deere 5515 F engine image
