| | 2003 - 2008 |
| 5015 Series | | Orchard/Vineyard tractor | | Agritalia built |
|
Series map:
5215 F
5315 F
41.8kw
49.6kw
| Transmission options |
| 12-speed partially synchronized |
| 24-speed partially synchronized |
| 24-speed power shuttle |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Four synchronized gears (1-4) in three ranges (A-C) with mechanical shuttle. Tractor must be stopped, and clutch used, to shift range. |

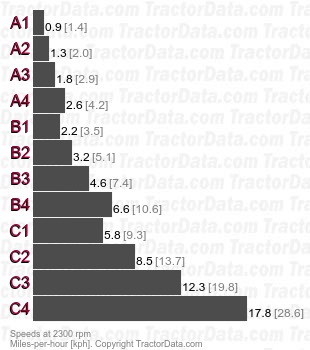

| Speeds |
| With 380/70R28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Hi-Lo
|
| Type | partially synchronized
|
| Gears | 24 forward and reverse
|
| The Hi-Lo transmission adds an additional two-speed shift to the base transmission. The Hi-Lo can be either electronic or mechanical. Mechanical is operator with a sliding lever and requires the clutch. Electro-hydraulic is a push-button shift. |

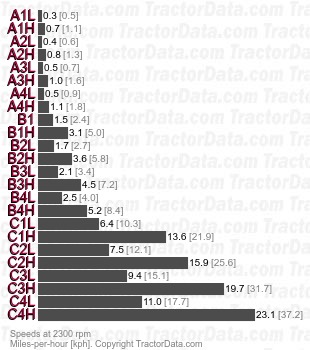

| Speeds |
| With 380/70R28 rear tires. Reverse speeds are 10% slower than forward. |
|
| Transmission |
| Transmission | Power Reverser
|
| Type | power shuttle
|
| Gears | 24 forward and 12 reverse
|
| Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and power shift Hi-Low. Push-button clutch for gear shifting. |

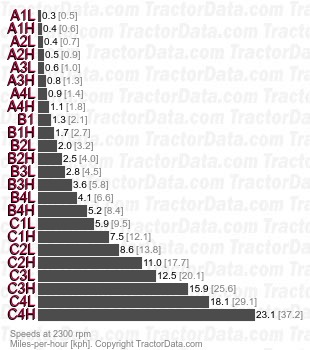

| Speeds |
| With 380/70R28 rear tires. Reverse speeds are 10% slower than the forward high range. |
|
