| | 2006 - 2012 |
| 5025 Series | | Utility tractor |
|
Series map:
5625
5725
60.4kw
66.4kw
| Transmission options |
| 9-speed gear |
| 9-speed partially synchronized |
| 12-speed power shuttle |
| Transmission |
| Type | gear
|
| Gears | 9 forward and 3 reverse
|
| Clutch | 279mm dry disc
|
| Oil capacity | 40.2 qts
38.0 L
|
| Three gears (1-3) plus reverse (R) in four ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range. |
| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Oil capacity | 40.2 qts
38.0 L
|
| Three gears (1-3) plus reverse (R) in four ranges (A-C). Gears are synchronized. Tractor must be stopped, and clutch used, to shift range. |

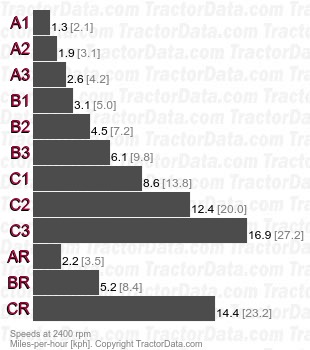

| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Transmission | PowrReverser
|
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet disc
|
| Oil capacity | 46 qts
43.5 L
|
| Four gears (1-4) in three ranges (A-C) with left-hand power shuttle. Gears are synchronized and can be shifting on the move using the clutch. Tractor must be stopped, and clutch used, to shift range. |

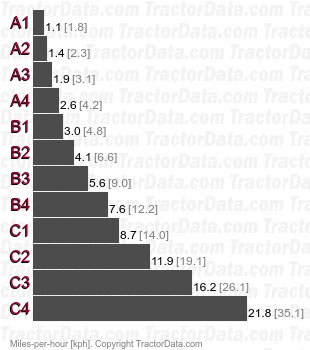

| Speeds |
| With 18.4-30 rear tires. Reverse speeds are 10% faster than forward. |
|
