John Deere 5625 Transmission


John Deere 5625 tractor photo
2006 - 2012
5025 Series
Utility tractor
Series map:
5425
5625
5725
57.4kw
60.4kw
66.4kw
Transmission
Typegear
Gears9 forward and 3 reverse
Clutch279mm dry disc
Oil capacity40.2 qts
38.0 L
Three gears (1-3) plus reverse (R) in four ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.

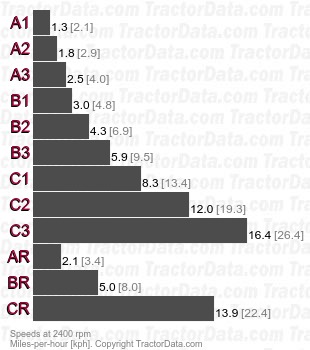

Speeds
With 16.9-30 rear tires.
5625  gear speeds
