Belarus T-40 Transmission


Belarus T-40 tractor photo
1961 - 1968
Row-Crop tractor
Series map:
T-40
27.6kw
Transmission options
7-speed gear
12-speed creeper
Transmission
Typegear
Gears7 forward and 1 reverse
Seven forward gears plus reverse. Russian literature refers to the lowest gear as "slow" and the next gear as "first".
Speeds

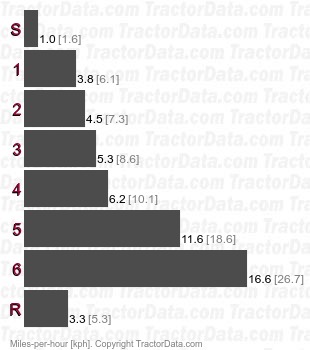

T-40  gear speeds
Transmission
Typecreeper
Gears12 forward and 2 reverse
Additional creeper range to the standard transmission. The two highest gears should not be used in creeper range.
Speeds

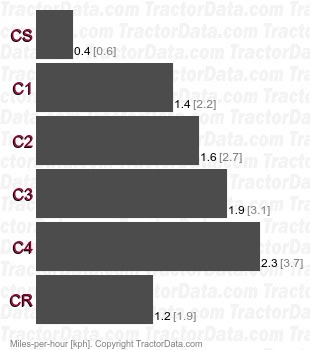

T-40  creeper speeds
