| | 2015 - 2018 |
| XG Series | | Compact Utility tractor |
|
Series map:
XG3032
XG3037
32.2hp
36.2hp
| Transmission options |
| 12-speed sync shuttle |
| hydrostatic |
| Transmission |
| Type | sync shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Four gears in three ranges with left-hand shuttle lever. Tractor must be stopped, and clutch used, to shift gears or range. |
| Speeds |
| With 11.2-24 R1 rear tires. Reverse speeds are 5% slower than forward. |
|
| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (3-range)
|

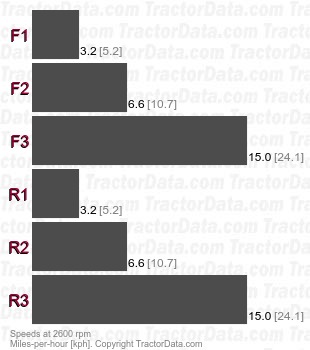

| Speeds |
| With 11.2-24 R1 rear tires. |
|
