John Deere 5090E Transmission


John Deere 5090E tractor photo
2018 -
5E Series
Utility tractor
Series map:
5090E
5100E
90.0hp
100.0hp
Transmission options
12-speed power shuttle
24-speed power shuttle
Transmission
TransmissionPowrReverser
Typepower shuttle
Gears12 forward and reverse
Clutchwet disc
Four gears in three ranges with left-hand power shuttle.
Speeds
With 460/85R30 rear tires. Reverse speeds are about 10% faster than forward.

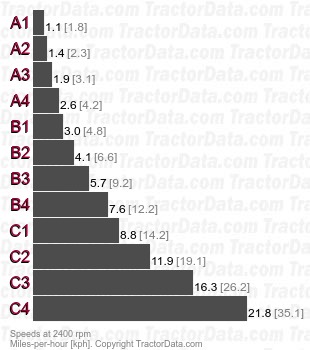

5090E PowrReverser power shuttle speeds
Transmission
TransmissionPowrReverser Plus
Typepower shuttle
Gears24 forward and 12 reverse
Clutchwet disc
Four gears in three ranges with shuttle and push-button two-speed power shift for all forward gears.
Speeds
With 460/85R30 rear tires. Reverse speeds are between the corresponding low and high forward speed.

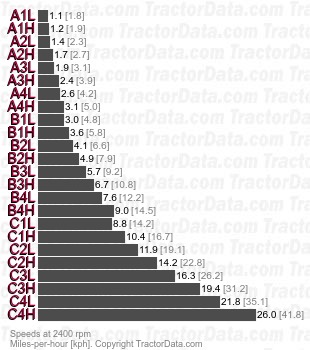

5090E PowrReverser Plus power shuttle speeds
