Fiat G190 Tests


Fiat G190 tractor photo
1993 - 2002
G Series
Row-Crop tractor
Series map:
G170
G190
G210
126.8kw
141.7kw
156.6kw

Note: the Fiat model G190 is the same as the Ford 8770. The following data is from the 8770 listing.
OCED Tractor Test 1648

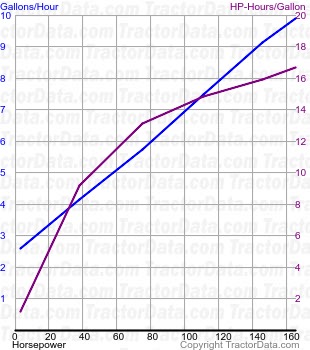

G190 fuel use from test 219
OCED Tractor Test 1648
Diesel 16-speed 4WD
July 1996 - August 1996,
Link: OCED Tractor Test 1648 file
PTO performance
Max power185.9 hp
138.6 kW
Fuel use10.0 gal/hour
37.9 l/hour
Power at rated engine speed164.8 hp
122.9 kW
Fuel use9.9 gal/hour
37.5 l/hour
Power at rated PTO speed179.4 hp
133.8 kW
Fuel use10.0 gal/hour
37.9 l/hour
Drawbar performance
Max power142.3 hp
106.1 kW
Fuel use9.7 gal/hour
36.7 l/hour
Gear 9 used for power test.
Max pull140.8 lbs
63 kg
Gear 6 used for pull test.
