Fiat G170 Engine
|
|
Note: the Fiat model G170 is the same as the Ford 8670. The following data is from the 8670 listing. |
| Engine Detail | |
| Ford | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled inline | |
| Displacement | 456 ci 7.5 L |
| Bore/Stroke | 4.4x5.0 inches 112 x 127 mm |
| Power | 170 hp 126.8 kW |
| Compression | 17.5:1 |
| Rated RPM | 2100 |
| Firing order | 1-5-3-6-2-4 |
| Starter volts | 12 |
| Starter power | 6 hp 4.5 kW |
| Coolant capacity | 26.4 qts 25.0 L |
| Intake valve clearance | 0.014 inches (cold) 0.356 mm |
| Exhaust valve clearance | 0.017 inches (cold) 0.432 mm |

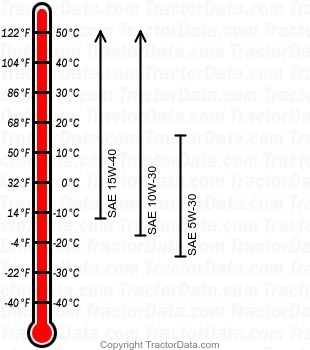

| Engine Oil | |
| |
| Oil capacity | 22 qts 20.8 L |
