| | 1985 - 1991 |
| 66 Series | | High-Clearance tractor | | Fiat built |
|
Series map:
70-66 High Clearance
80-66 High Clearance
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed syncromesh |
| 20-speed creeper |
| Transmission |

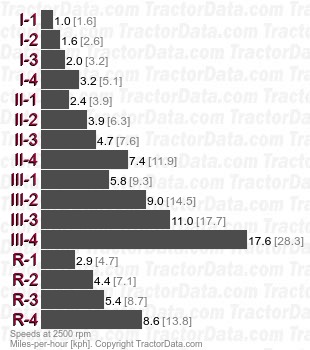

| Type | syncromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range. |
| Speeds |
| With 13.6-38 rear tires. |
|
| Transmission |

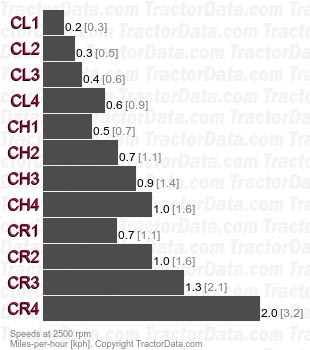

| Type | creeper
|
| Gears | 20 forward and 8 reverse
|
| Clutch | 279.4mm dry disc
|
| Speeds |
| With 13.6-38 rear tires. |
|
