| | 1985 - 1991 |
| 66 Series | | Orchard/Vineyard tractor | | Fiat built |
|
Series map:
70-66 Orchard
80-66 Orchard
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
| Transmission options |
| 12-speed syncromesh |
| 12-speed mechanical shuttle |
| Transmission |
| Type | syncromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Four synchronized gears (1-4) in three ranges (I, II, III) plus reverse range. |

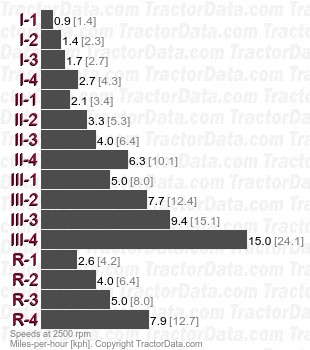

| Speeds |
| With 14.9-24 rear tires. |
|
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | 279.4mm dry disc
|

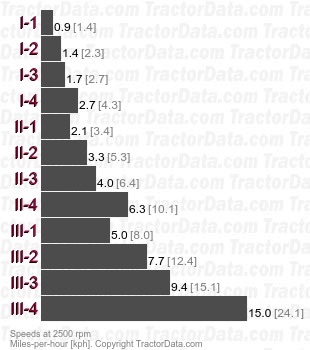

| Speeds |
| With 14.9-24 rear tires. |
|
