John Deere 5125R Tests


John Deere 5125R tractor photo
2017 -
5R Series
Utility tractor
Series map:
5115R
5125R
115.0hp
125.0hp
Tractor Tests
OECD 2197: diesel CommandQuad 4WD Open Center
OECD 2198: diesel CommandQuad 4WD PFC
OCED Tractor Test 2197

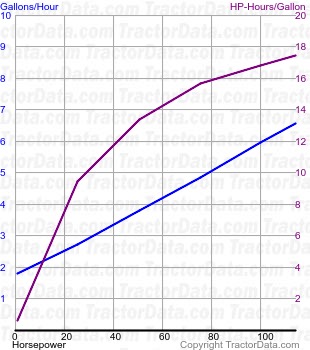

5125R fuel use from test 1145
OCED Tractor Test 2197
Diesel CommandQuad 4WD Open Center
April 9 - 24, 2018
Link: OCED Tractor Test 2197 file
PTO performance
Max power122.41 hp
91.3 kW
Fuel use6.6 gal/hour
25.0 l/hour
Power at rated engine speed112.32 hp
83.8 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed117.91 hp
87.9 kW
Fuel use6.6 gal/hour
25.0 l/hour
OCED Tractor Test 2198

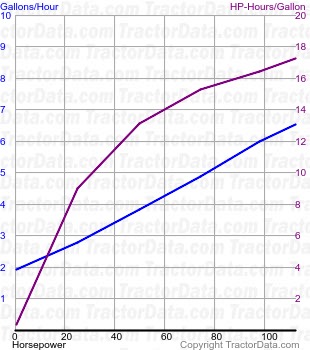

5125R fuel use from test 1146
OCED Tractor Test 2198
Diesel CommandQuad 4WD PFC
April 11 - 24, 2018
Link: OCED Tractor Test 2198 file
PTO performance
Max power124.57 hp
92.9 kW
Fuel use6.7 gal/hour
25.4 l/hour
Power at rated engine speed114.12 hp
85.1 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed119.37 hp
89.0 kW
Fuel use6.6 gal/hour
25.0 l/hour
