John Deere 5115R
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Augusta, Georgia, USA | |
| Original price was $95,563 in 2019 | |
| John Deere 5115R Engine | |
| John Deere 4.5L 4-cyl diesel | |
 Engine details ... |
| John Deere 5115R Transmissions | |
| 16-speed | |
| 24-speed | |
| 32-speed | |
 Transmission details ... |
| John Deere 5115R Power | |
| Engine | 115 hp 85.8 kW |
| Open center PTO (claimed) | 100 hp 74.6 kW |
| PFC PTO (claimed) | 105 hp 78.3 kW |
| PTO (tested) | 113.79 hp 84.9 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | electro-hydraulic |
| Power steering | |
| Cab standard with air-conditioning. | |

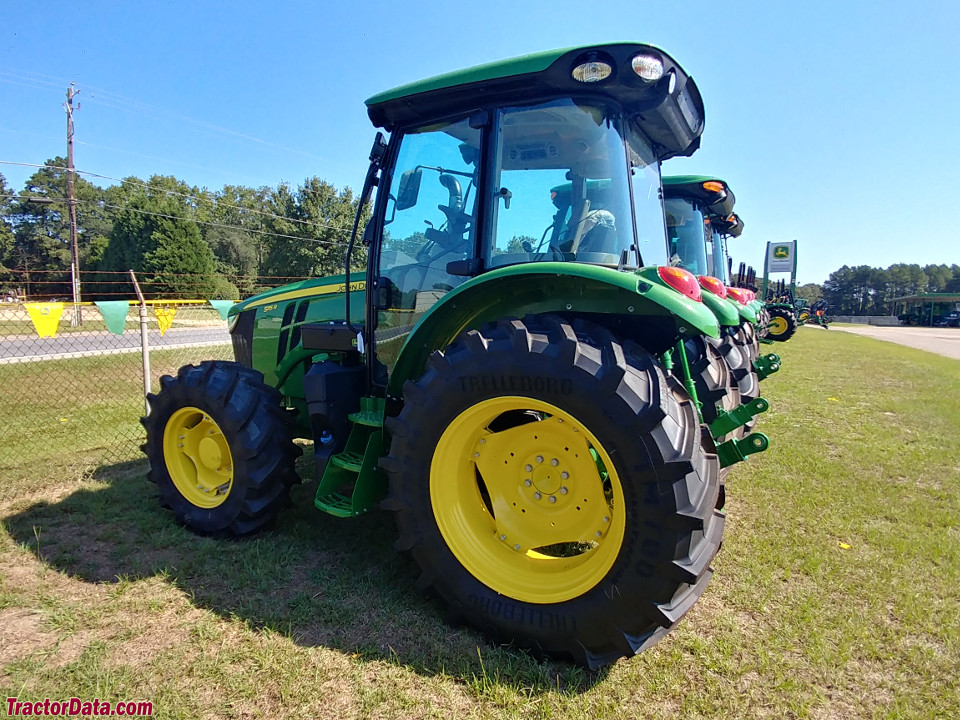

| Photos | |
 | |
 John Deere 5115R photos... | |
| Capacity | |
| Fuel | 38 gal 143.8 L |
| Exhaust fluid (DEF) | 2.9 gal 11.0 L |
| Open center Hydraulic system | 11.75 gal 44.5 L |
| PFC Hydraulic system | 12.5 gal 47.3 L |
| Hydraulics | |
| Open center Type | open center |
| PFC Type | pressure-flow compensated |
| Open center Capacity | 11.75 gal 44.5 L |
| PFC Capacity | 12.5 gal 47.3 L |
| Pressure | 2900 psi 200.0 bar |
| Open center SCV flow | 19.3 gpm 73.1 lpm |
| PFC SCV flow | 26.4 gpm 99.9 lpm |
| Open center Total flow | 25.5 gpm 96.5 lpm |
| PFC Total flow | 39 gpm 147.6 lpm |
| Open center Steering flow | 6.2 gpm 23.5 lpm |
| PFC Steering flow | 8.1 gpm 30.7 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | electro-hydraulic draft sensing |
| Rear lift (at ends) | 7158 lbs 3246 kg |
| 8157 lbsOptOptional 3700 kg | |
| Rear lift (at 24"/610mm) | 6979 lbs 3165 kg |
| 7868 lbsOptOptional 3568 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@2100 |
| 540E@1645 | |
| 1000@2103 | |
| Dimensions & Tires | |
| Wheelbase | 88.6 inches 225 cm |
| Weight | 9811 lbs 4450 kg |
| Front tire | 12.4R24 |
| Rear tire | 18.4R30 |
 Full dimensions and tires ... | |
| John Deere 5115R attachments | |
| front-end loader | |
 Attachment details ... |
| 5115R Serial Numbers | |
| Location: | Serial number plate on the right side of the 5115R frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Battery CCA | 950 |
| Battery volts | 12 |
| References | |
 | |
| 5R Series Tractors published in 2018, by John Deere | |
| Get a load of Our new 5R options published in 2018, by John Deere |
