John Deere 5100R Tests


John Deere 5100R tractor photo
2017 -
5R Series
Utility tractor
Series map:
5090R
5100R
5115R
90.0hp
100.0hp
115.0hp
Tractor Tests
NTTL 2193: diesel CommandQuad 4WD Open Center
NTTL 2194: diesel CommandQuad 4WD PFC
Nebraska Tractor Test 2193

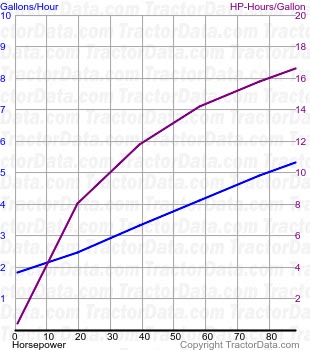

5100R fuel use from test 2193
Nebraska Tractor Test 2193
Diesel CommandQuad 4WD Open Center
April 18 - 24, 2018
Link: Nebraska Tractor Test 2193 file
PTO performance
Max power100.11 hp
74.7 kW
Fuel use5.3 gal/hour
20.1 l/hour
Power at rated engine speed88.17 hp
65.7 kW
Fuel use5.3 gal/hour
20.1 l/hour
Power at rated PTO speed94.51 hp
70.5 kW
Fuel use5.4 gal/hour
20.4 l/hour
Nebraska Tractor Test 2194

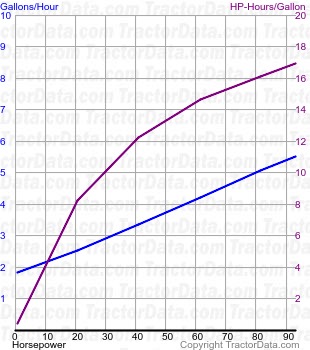

5100R fuel use from test 2194
Nebraska Tractor Test 2194
Diesel CommandQuad 4WD PFC
April 16 - 24, 2018
Link: Nebraska Tractor Test 2194 file
PTO performance
Max power103.73 hp
77.4 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated engine speed92.95 hp
69.3 kW
Fuel use5.5 gal/hour
20.8 l/hour
Power at rated PTO speed97.92 hp
73.0 kW
Fuel use5.5 gal/hour
20.8 l/hour
