John Deere 5090R Transmission


John Deere 5090R tractor photo
2017 -
5R Series
Utility tractor
Series map:
5090R
5100R
90.0hp
100.0hp
Transmission options
16-speed
24-speed
32-speed
Transmission
TransmissionCommandQuad
Gears16 forward and reverse
Clutchhydraulic wet disc
Speeds
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward except in D3 and D4.

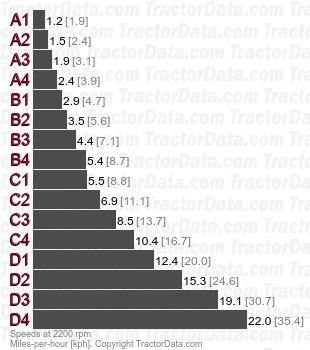

5090R CommandQuad  speeds
Transmission
TransmissionCommandQuad Creeper
Gears24 forward and reverse
Clutchhydraulic wet disc
Speeds
With 480/70R28 rear tires.

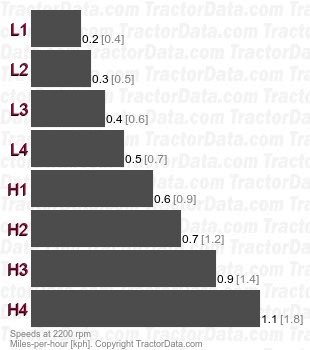

5090R CommandQuad Creeper  speeds
Transmission
TransmissionCommand8
Gears32 forward and 16 reverse
Clutchhydraulic wet disc
