John Deere 5090R Tests


John Deere 5090R tractor photo
2017 -
5R Series
Utility tractor
Series map:
5090R
5100R
90.0hp
100.0hp
Tractor Tests
NTTL 2191: diesel CommandQuad 4WD Open Center
NTTL 2192: diesel CommandQuad 4WD PFC
Nebraska Tractor Test 2191

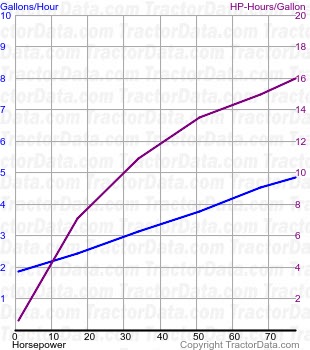

5090R fuel use from test 2191
Nebraska Tractor Test 2191
Diesel CommandQuad 4WD Open Center
April 13 - 24, 2018
Link: Nebraska Tractor Test 2191 file
PTO performance
Max power89.61 hp
66.8 kW
Fuel use5.0 gal/hour
18.9 l/hour
Power at rated engine speed77.17 hp
57.5 kW
Fuel use4.8 gal/hour
18.2 l/hour
Power at rated PTO speed81.89 hp
61.1 kW
Fuel use4.9 gal/hour
18.5 l/hour
Nebraska Tractor Test 2192

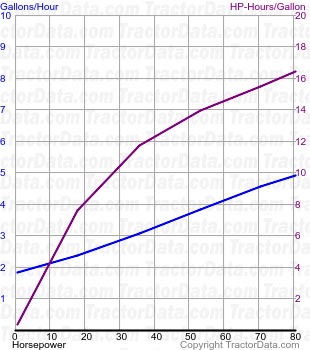

5090R fuel use from test 2192
Nebraska Tractor Test 2192
Diesel CommandQuad 4WD PFC
April 16 - 24, 2018
Link: Nebraska Tractor Test 2192 file
PTO performance
Max power92.28 hp
68.8 kW
Fuel use5.0 gal/hour
18.9 l/hour
Power at rated engine speed80.54 hp
60.1 kW
Fuel use4.9 gal/hour
18.5 l/hour
Power at rated PTO speed86.28 hp
64.3 kW
Fuel use5.0 gal/hour
18.9 l/hour
