Ford 946 Transmission


Ford 946 tractor photo
1989 - 1993
900 Series
Four-wheel Drive (4WD) tractor
Series map:
946
976
325.0hp
360.0hp

Note: the Ford model 946 is the same as the Versatile 946. The following data is from the 946 listing.
Transmission options
12-speed constant mesh
12-speed full power shift
Transmission
ManufacturerVersatile
Typeconstant mesh
Gears12 forward and 4 reverse
Clutch394mm dry disc
Oil capacity21.5 qts
20.3 L
Four gears in three ranges, plus reverse range.
Speeds
946  constant mesh speeds
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutch228mm wet disc
Oil capacity50 qts
47.3 L
Speeds

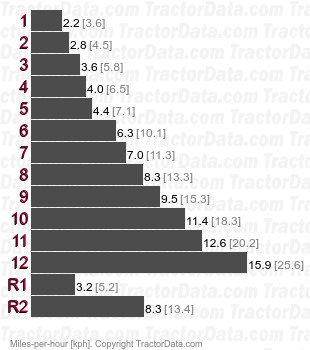

946  full power shift speeds
Shift Pattern

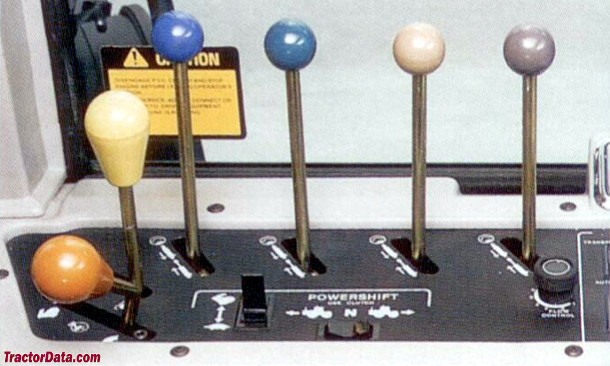

Ford 946 transmission controls
