Ford 946 Engine


Ford 946 tractor photo
1989 - 1993
900 Series
Four-wheel Drive (4WD) tractor
Series map:
946
976
325.0hp
360.0hp

Note: the Ford model 946 is the same as the Versatile 946. The following data is from the 946 listing.
Engine Detail
Cummins NTA-855-A325
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power325 hp
242.4 kW
Air cleanerdry dry element
Pre-heatingether injection
 block heater
Rated RPM2100
Idle RPM1000-2100
Torque1057 lb-ft
1433.3 Nm
Torque RPM1400
Starter volts12
Oil capacity39.1 qts
37.0 L
Coolant capacity63.7 qts
60.3 L
Ford 946 Engine

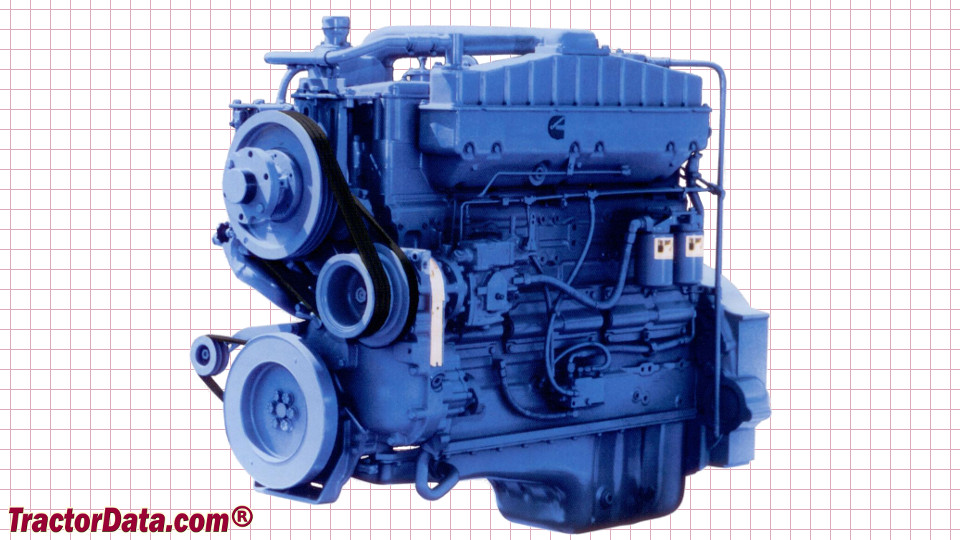

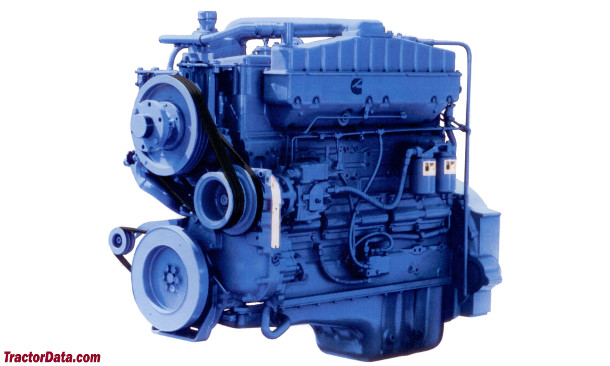

Ford 946 engine image
