Ford 876 Transmission


Ford 876 tractor photo
1989 - 1993
800 Series
Four-wheel Drive (4WD) tractor
Series map:
846
876
230.0hp
280.0hp

Note: the Ford model 876 is the same as the Versatile 876. The following data is from the 876 listing.
Transmission options
12-speed constant mesh
12-speed full power shift
Transmission
TransmissionVersatile
Typeconstant mesh
Gears12 forward and 4 reverse
Clutch356mm dry disc
Oil capacity21.5 qts
20.3 L
Speeds
876  constant mesh speeds
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutch228mm wet disc
Oil capacity18 qts
17.0 L
Speeds

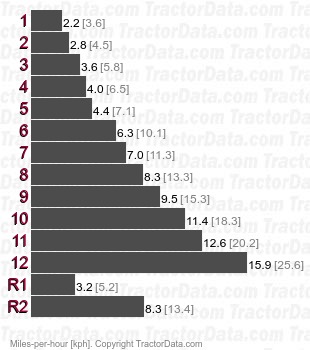

876  full power shift speeds
Shift Pattern
Ford 876 transmission controls
