Ford 846 Transmission


Ford 846 tractor photo
1989 - 1993
800 Series
Four-wheel Drive (4WD) tractor
Series map:
846
876
230.0hp
280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.
Transmission options
12-speed constant mesh
15-speed partially synchronized
Transmission
Typeconstant mesh
Gears12 forward and 4 reverse
Clutch356mm dry disc
Oil capacity21.5 qts
20.3 L
Speeds
846  constant mesh speeds
Transmission
TransmissionVersatile Three-by-Five
Typepartially synchronized
Gears15 forward and 5 reverse
Clutch228mm hydraulic wet disc
Five synchronized gears in three ranges, plus reverse range.
Speeds

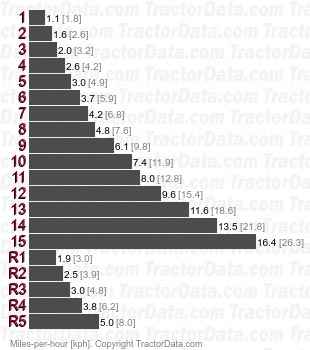

846 Three-by-Five partially synchronized speeds
