Ford 846 Engine


Ford 846 tractor photo
1989 - 1993
800 Series
Four-wheel Drive (4WD) tractor
Series map:
846
876
230.0hp
280.0hp

Note: the Ford model 846 is the same as the Versatile 846. The following data is from the 846 listing.
Engine Detail
Cummins L10-A230
aftercooled turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement611 ci
10.0 L
Bore/Stroke4.921x5.354 inches
125 x 136 mm
Power230 hp
171.5 kW
Air cleanerdual dry element
Pre-heatingether injection
 block heater
Rated RPM2100
Torque748 lb-ft
1014.3 Nm
Torque RPM1300
Starter volts12
Oil capacity28 qts
26.5 L
Coolant capacity55 qts
52.1 L

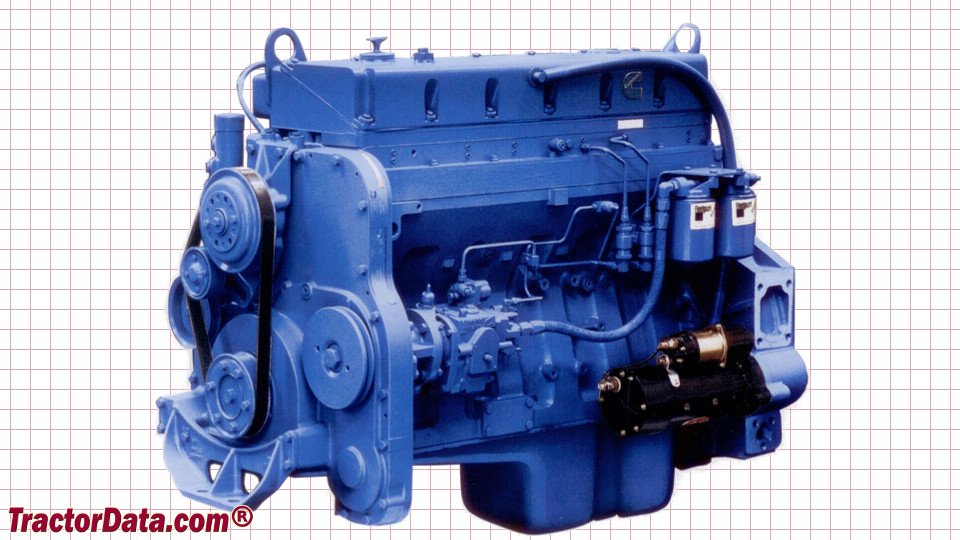

Ford 846 Engine
Ford 846 engine image
