Ford 3910 Narrow Orchard Transmission


Ford 3910 Narrow Orchard tractor photo
10 Series
Orchard/Vineyard tractor
Series map:
3910 Narrow Orchard
4610 Narrow Orchard
51.0hp
64.5hp
Transmission options
8-speed gear
8-speed synchromesh
Transmission
Typegear
Gears8 forward and 2 reverse
Clutch330mm dry disc
Oil capacity12.2 qts
11.5 L
Speeds
3910 Narrow Orchard  gear speeds
Transmission
Typesynchromesh
Gears8 forward and 4 reverse
Speeds

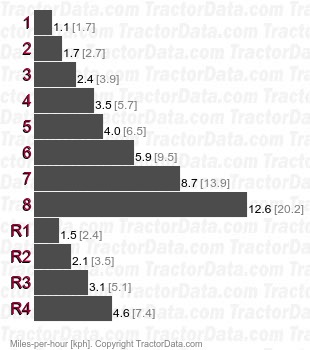

3910 Narrow Orchard  synchromesh speeds
