John Deere 2510 Hi-Crop Engine
|
|
| Engine options | |
| John Deere 3.0L 4-cyl gasoline | |
| John Deere 3.3L 4-cyl diesel |
| Engine Detail | |
| John Deere | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled inline valve-in-head | |
| Displacement | 180.43 ci 3.0 L |
| Bore/Stroke | 3.86x3.86 inches 98 x 98 mm |
| Fuel system | carburetor |
| Air cleaner | dry |
| Compression | 7.5:1 |
| Rated RPM | 2500 |
| Idle RPM | 800-2650 |
| Operating RPM | 1500-2500 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.014 inches 0.356 mm |
| Exhaust valve clearance | 0.022 inches 0.559 mm |

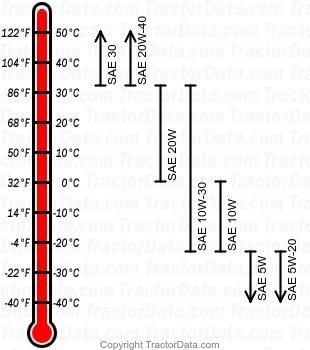

| Engine Oil | |
| |
| Oil capacity | 7 qts 6.6 L |
| Oil change | 200 h |
| Engine Detail | |
| John Deere | |
| diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled inline valve-in-head | |
| Displacement | 202.68 ci 3.3 L |
| Bore/Stroke | 3.86x4.33 inches 98 x 110 mm |
| Air cleaner | oil bath |
| Pre-heating | ether injection |
| block heater (optional) | |
| Compression | 16.3:1 |
| Rated RPM | 2500 |
| Idle RPM | 800-2650 |
| Operating RPM | 1500-2500 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Intake valve clearance | 0.014 inches 0.356 mm |
| Exhaust valve clearance | 0.018 inches 0.457 mm |
| Engine Oil | |
| |
| Oil capacity | 7 qts 6.6 L |
| Oil change | 200 h |
