NorTrac 250AS Transmission


NorTrac 250AS tractor photo
1986 - 1990
Utility tractor
Belarus built

Note: the NorTrac model 250AS is the same as the Belarus 250AS. The following data is from the 250AS listing.
Transmission
Transmissionsliding gear
Gears8 forward and 6 reverse
Oil capacity10.6 qts
10.0 L
Transmission operated with clutch and two levers. The mode selection lever chooses between forward, reverse, or netural. The range selection lever chooses one of eight gears, although SL1 and SL2 are forward only.

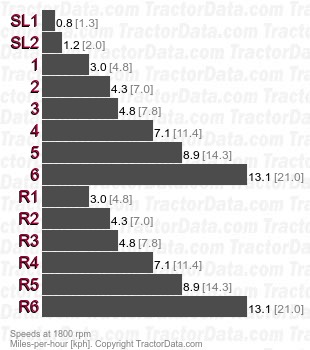

Speeds
With 10x28 rear tires.
250AS sliding gear  speeds
