Tractors > John Deere > 6310S

John Deere 6310S Engine



John Deere 6310S tractor photo
1999 - 2002
6000 TEN Series
Orchard/Vineyard tractor
Series map:
6310S
6410S
99.0hp
104.0hp
Engine Detail
John Deere 4045
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power (gross)99 hp
73.8 kW
Rated RPM2300
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power4 hp
3.0 kW
Coolant capacity14.4 qts
13.6 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

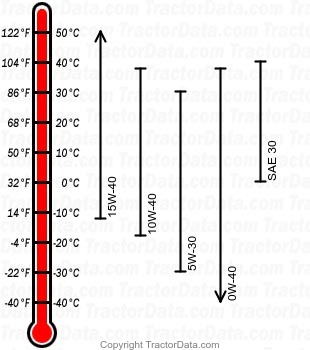

6310S diesel engine oil chart
Oil capacity12.8 qts
12.1 L
