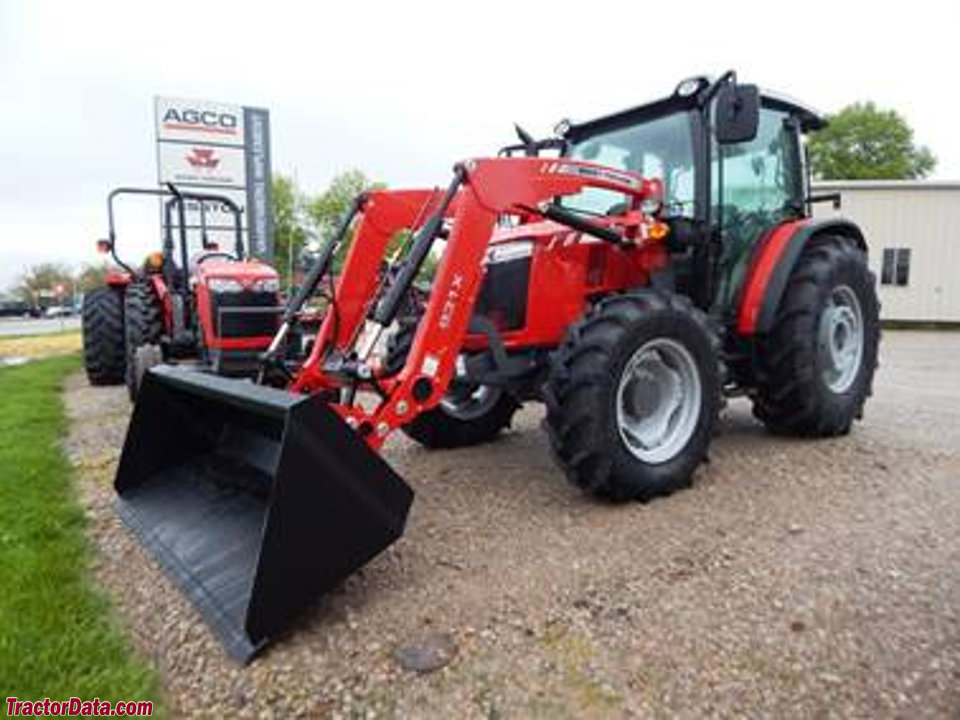

Massey Ferguson 4707
| | 2016 - |
| 4700 Global Series | | Utility tractor |
|
Series map:
4707
4708
70.0hp
80.0hp
| Production |
| Manufacturer | Massey Ferguson (a part of AGCO)
|
| Utility tractor |
| Factories | Brazil
|
| | China
|
| Original price | $36,056 (2018 ROPS 2WD )
|
| $50,796 (2018 Cab 4WD )
|
| Massey Ferguson 4707 Power |
| Engine | 70 hp
52.2 kW
|
| PTO (claimed) | 58 hp
43.3 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | planetary
|
| Differential lock | electro-hydraulic rear
|
| Wet disc brakes |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Valves | 1 to 3
|
| SCV flow | 17.2 gpm
65.1 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift (at 24"/610mm) | 4850 lbs
2199 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| | 540/540E (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 80
|
| Battery CCA | 590
|
| Battery volts | 12
|
