Series map:
1434
1634
1654
101.4kw
114.0kw
118.0kw
| Transmission |
| Type | two-speed power shift
|
| Gears | 12 forward and 6 reverse
|
| Clutch | 380mm hydraulic dry disc
|
| Oil capacity | 48.6 qts
46.0 L
|
| Three gears (1-3) in two ranges (I/II) plus reverse range (R) with two-speed power shift. |

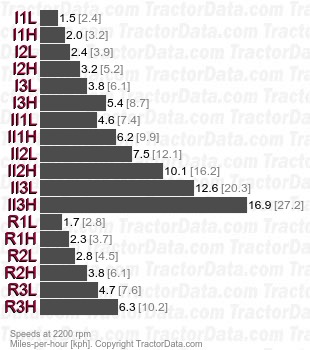

| Speeds |
| With 18.4-38 rear tires. |
|
