Tractors > Kubota > KL48Z-PC

Kubota KL48Z-PC Transmission



Kubota KL48Z-PC tractor photo
2012 - 2015
KL Kingwel Zero Series
Half-track Crawler tractor
Series map:
KL44Z-PC
KL48Z-PC
KL53Z-PC
32.4kw
35.3kw
39.0kw
Transmission options
continuously-varaible transmission
30-speed
Transmission
TransmissionDual Drive
Typecontinuously-varaible transmission
Gearsinfinite forward and reverse (3-range)
Clutchdry disc
Hydro-mechanical CVT.
Speeds

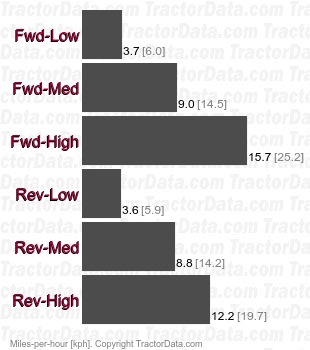

KL48Z-PC Dual Drive continuously-varaible transmission speeds
Transmission
Gears30 forward and 20 reverse
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.
