Kubota KL48Z Transmission


Kubota KL48Z tractor photo
2012 - 2015
KL Kingwel Zero Series
Compact Utility tractor
Series map:
KL44Z
KL48Z
KL53Z
32.4kw
35.3kw
39.0kw
Transmission options
continuously-varaible transmission
30-speed
Transmission
TransmissionDual Drive
Typecontinuously-varaible transmission
Gearsinfinite forward and reverse (3-range)
Clutchdry disc
Hydro-mechanical CVT.
Speeds

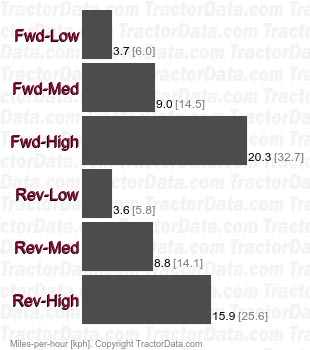

KL48Z Dual Drive continuously-varaible transmission speeds
Transmission
Gears30 forward and 20 reverse
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.
