Tractors > Kubota > KL40Z

Kubota KL40Z Transmission



Kubota KL40Z tractor photo
2012 - 2015
KL Kingwel Zero Series
Compact Utility tractor
Series map:
KL37Z
KL40Z
KL44Z
27.2kw
29.4kw
32.4kw
Transmission options
continuously-varaible transmission
24-speed
30-speed
Transmission
TransmissionDual Drive
Typecontinuously-varaible transmission
Gearsinfinite forward and reverse (2-range)
Clutchdry disc
Hydro-mechanical CVT.
Speeds

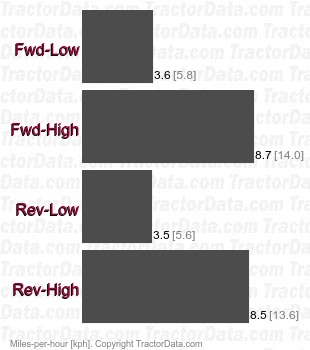

KL40Z Dual Drive continuously-varaible transmission speeds
Transmission
TransmissionDual Drive
Typecontinuously-varaible transmission
Gearsinfinite forward and reverse (3-range)
Hydro-mechanical CVT.
Speeds

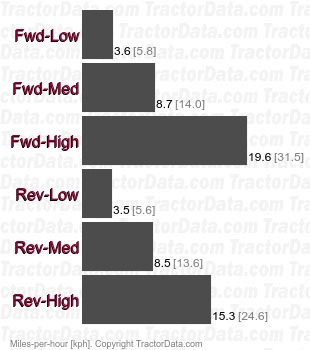

KL40Z Dual Drive continuously-varaible transmission speeds
Transmission
Gears24 forward and 16 reverse
Twelve hydraulically-shift gears (eight in reverse) in two ranges.
Transmission
Gears30 forward and 20 reverse
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.
