Kubota KL34R Transmission


No photo available
2012 - 2015
KL Kingwel R Series
Compact Utility tractor
Series map:
KL31R
KL34R
22.8kw
25.0kw
Transmission options
16-speed
24-speed power shift
30-speed
Transmission
Gears16 forward and reverse
Clutchdry disc
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift.

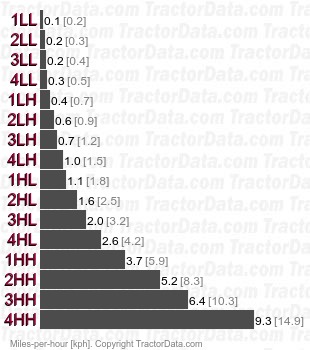

Speeds
KL34R   speeds
Transmission
TransmissionGlideshift
Typepower shift
Gears24 forward and 16 reverse
Twelve hydraulically-shift gears (eight in reverse) in two ranges.
Transmission
Gears30 forward and 20 reverse
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range.
